CONFIGURE AYRLED ULTRA QUICKLY AND EASILY
AYRLED ULTRA is designed to create custom linear LED profiles directly during installation: the profile, diffuser and FREE CUT light source, already integrated into the profile, can all be cut together to the same length.
1.

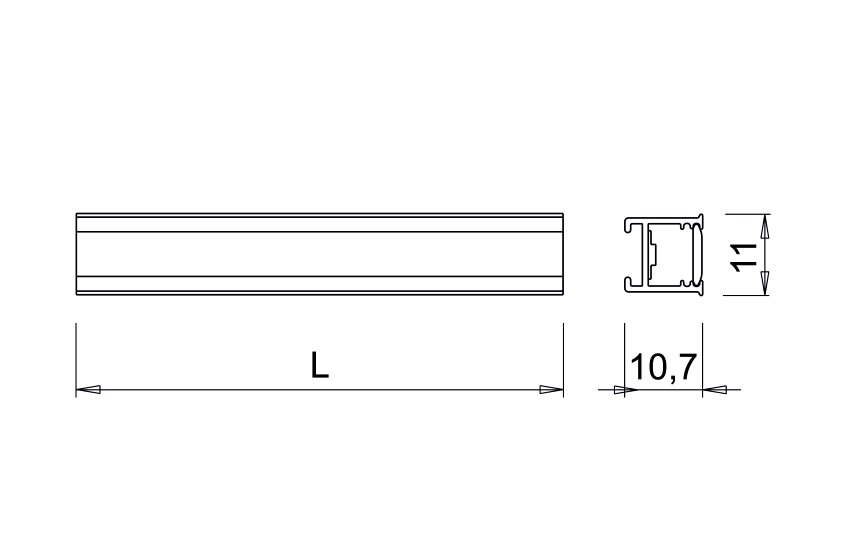

CUT THE PROFILE
TO THE DESIRED
SIZE

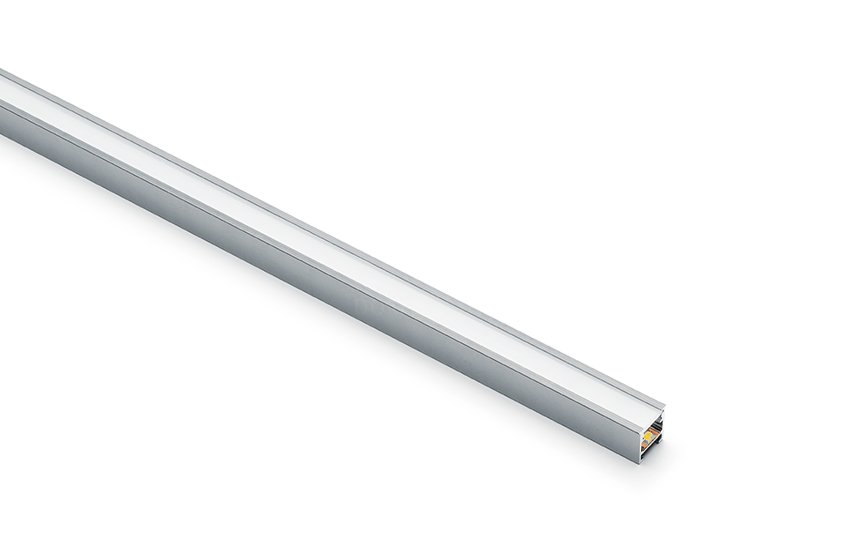

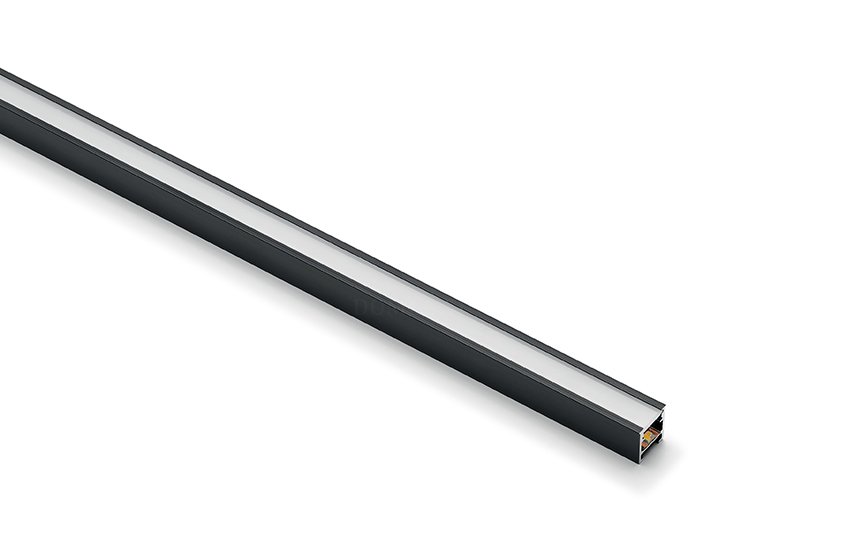

PROFILE
2.
CHOOSE THE
SWITCHING
ON SYSTEM

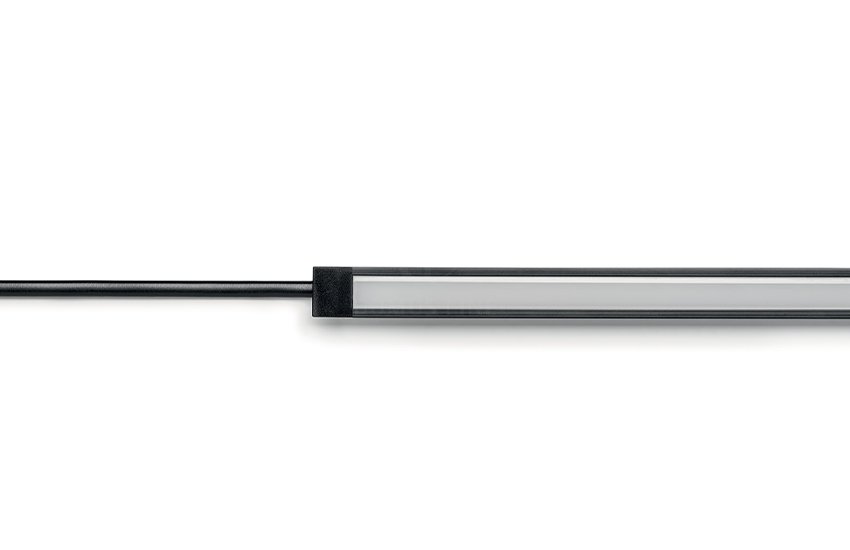

WITHOUT SENSOR
WITH SENSOR SD SENSOR DIMMER

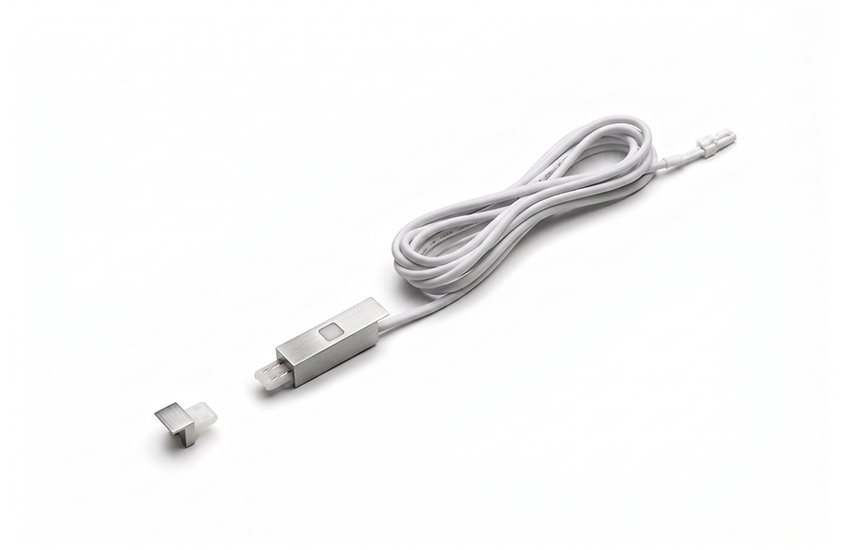

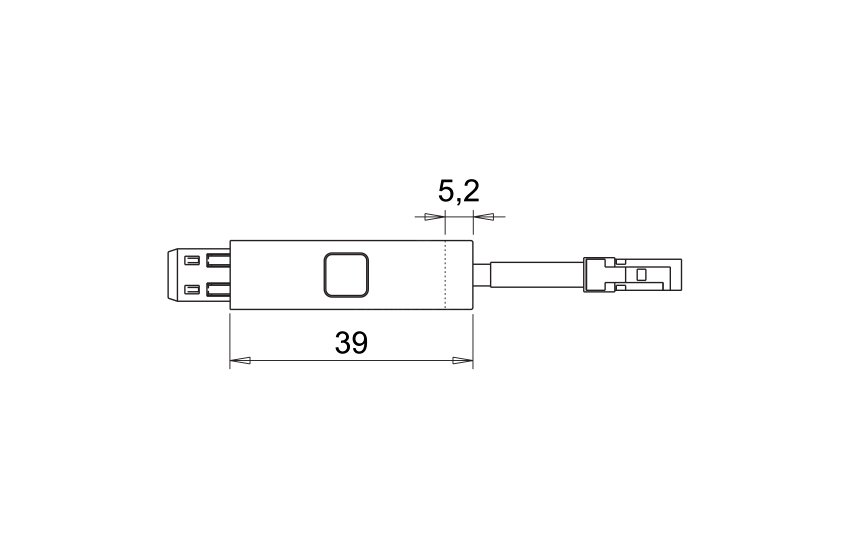

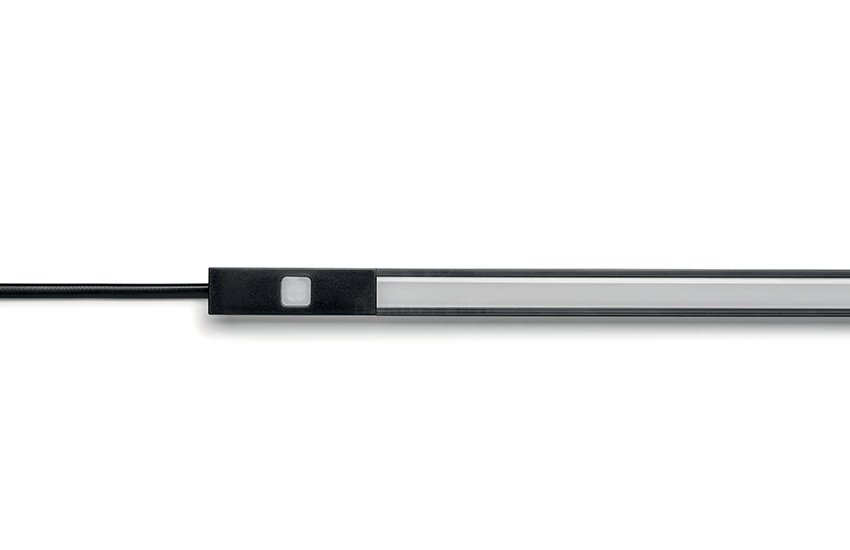

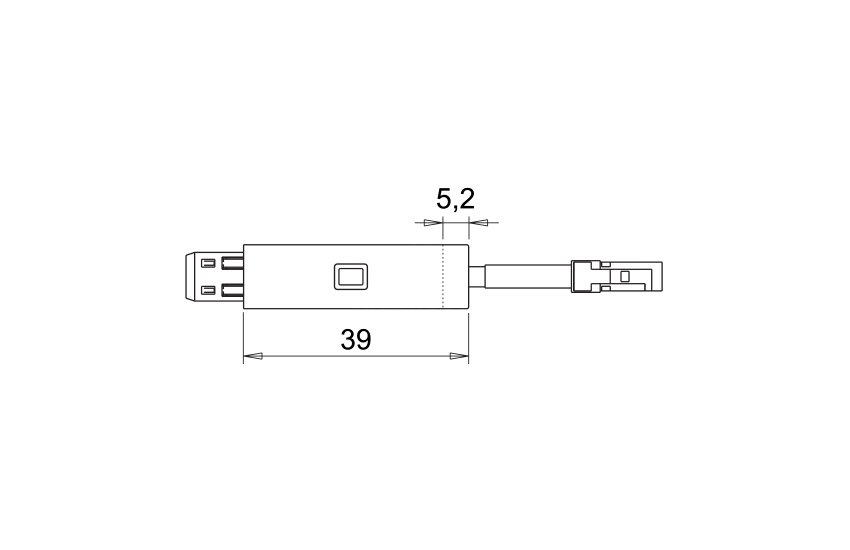

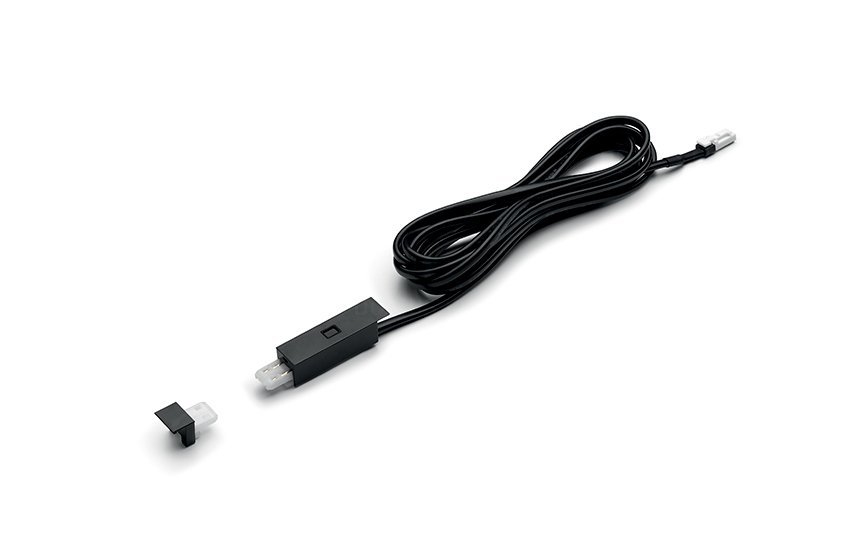

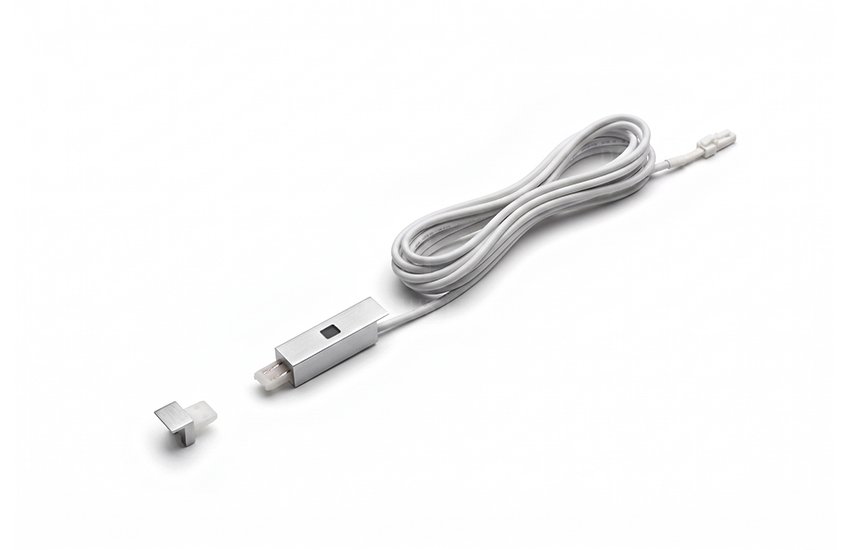

WITH IFR BACK-DOOR SENSOR
3.
CHOOSE THE
INSTALLATION TYPE

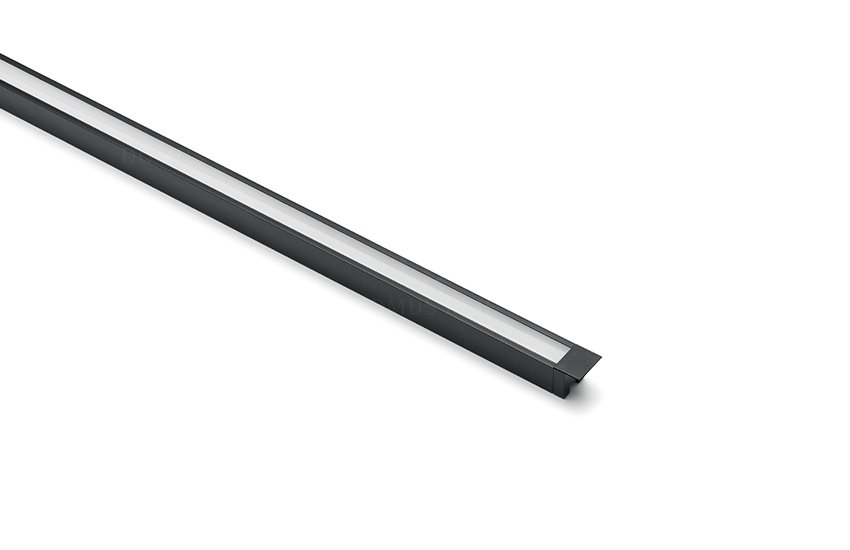

RECESSED

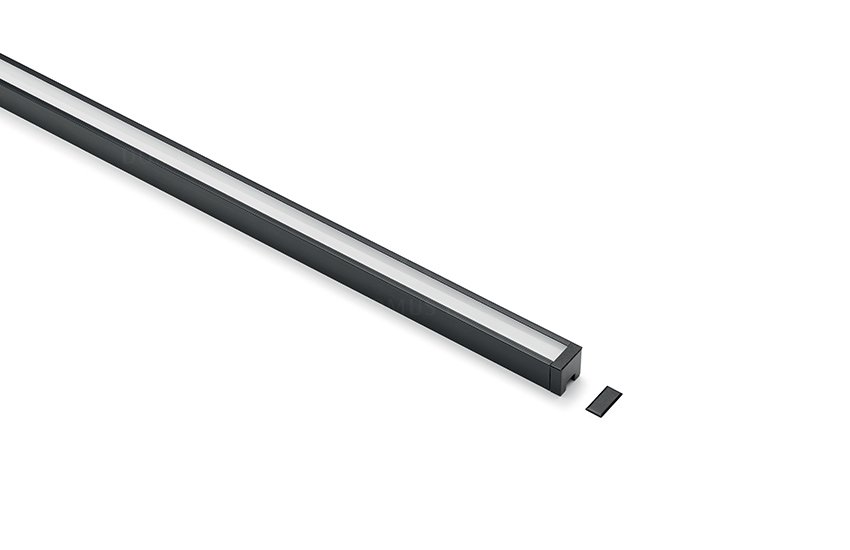

SURFACE-MOUNTED
4.
COMPLETE
THE PROFILE

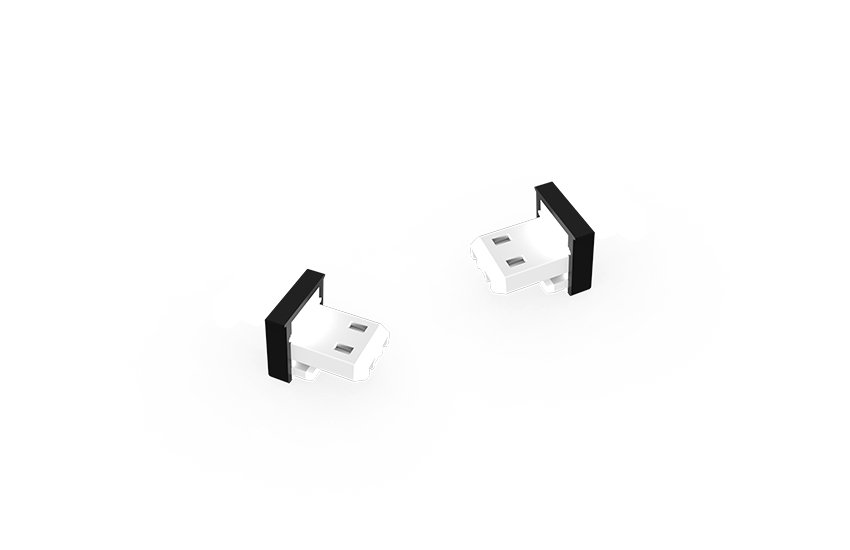

ENDS

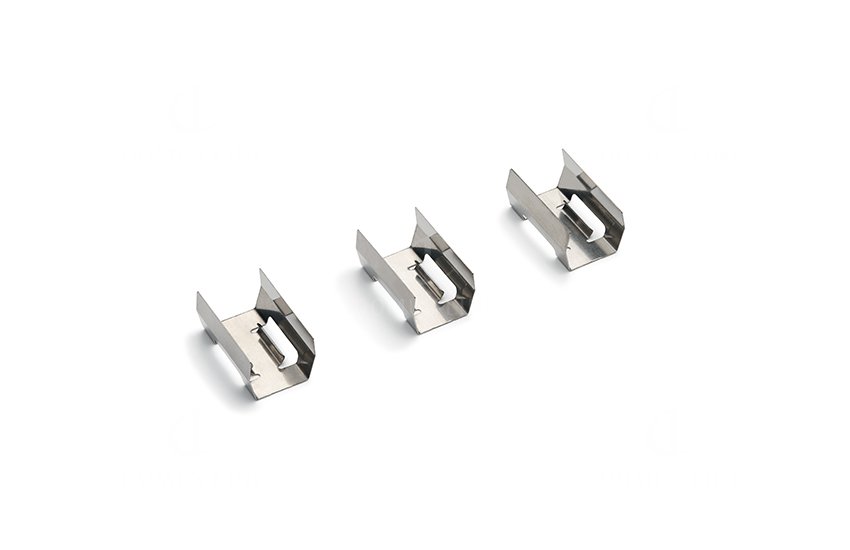

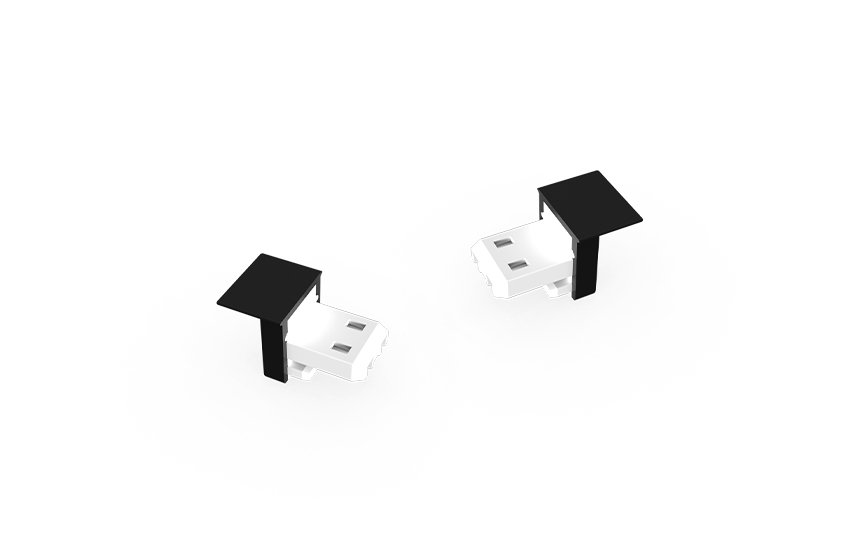

SPRINGS
ENDS SP

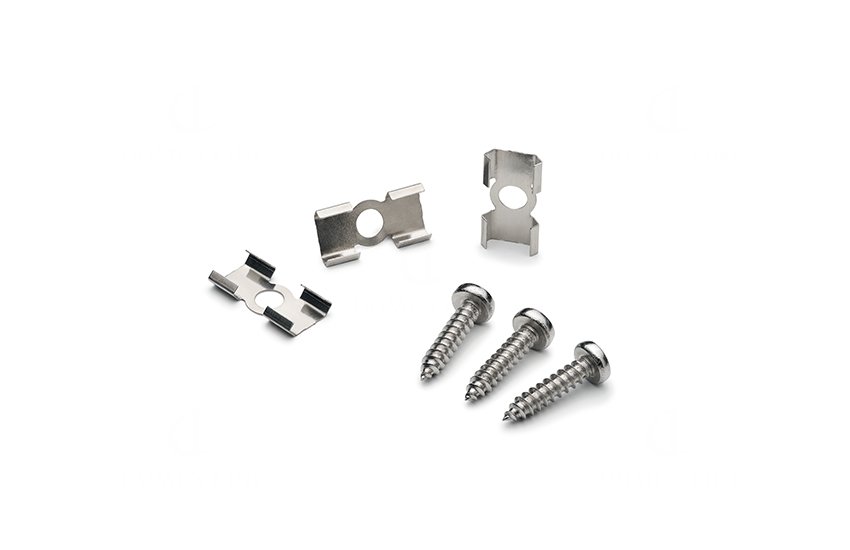

SPRINGS SP

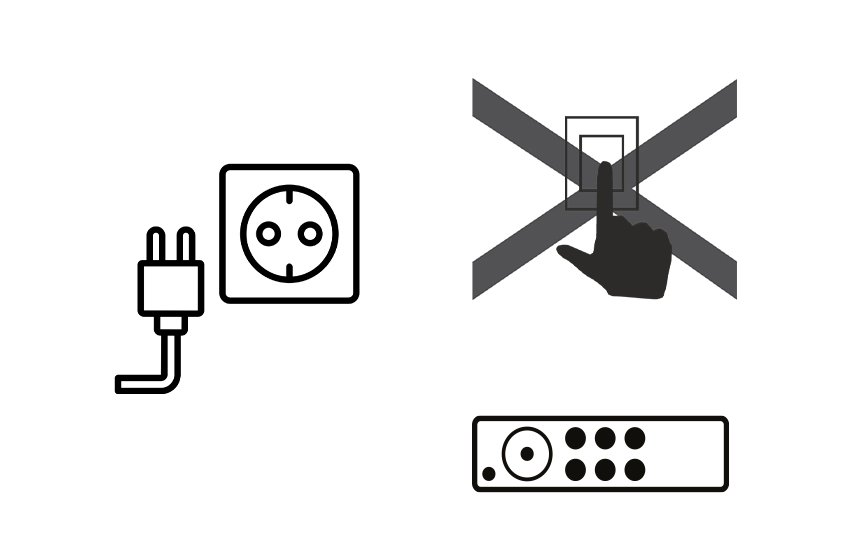

5.
CHOOSE THE
POWER
SYSTEM

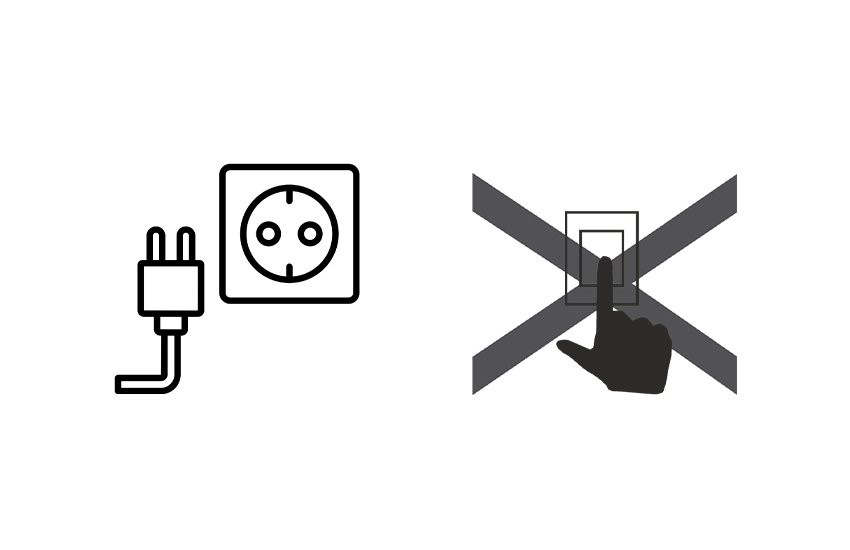

WITH DIRECT SWITCH
for profile with sensor

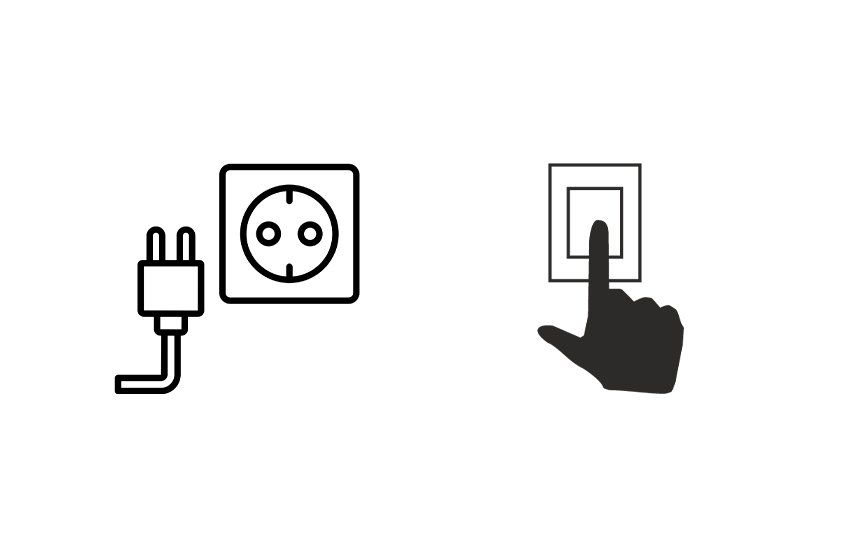

WITH SWITCH CONTROL
for sensorless profile
WITH CONTROL SYSTEM
for sensorless profile

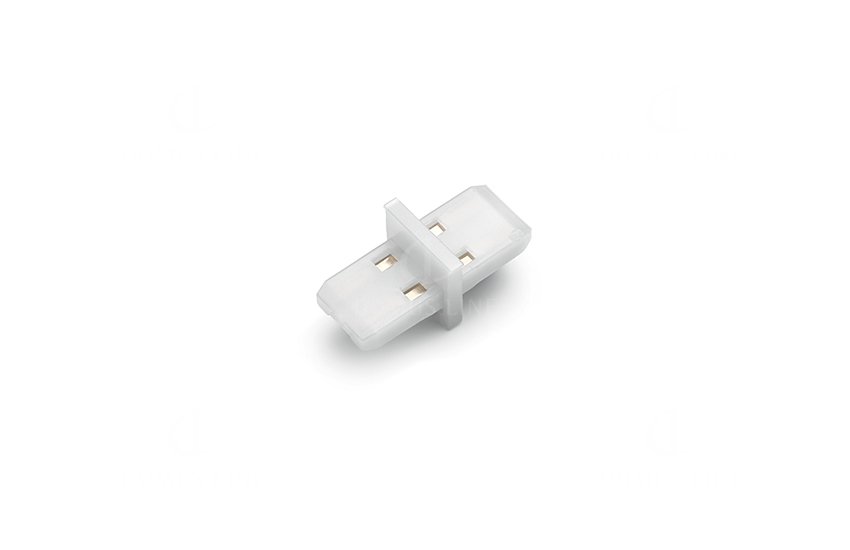

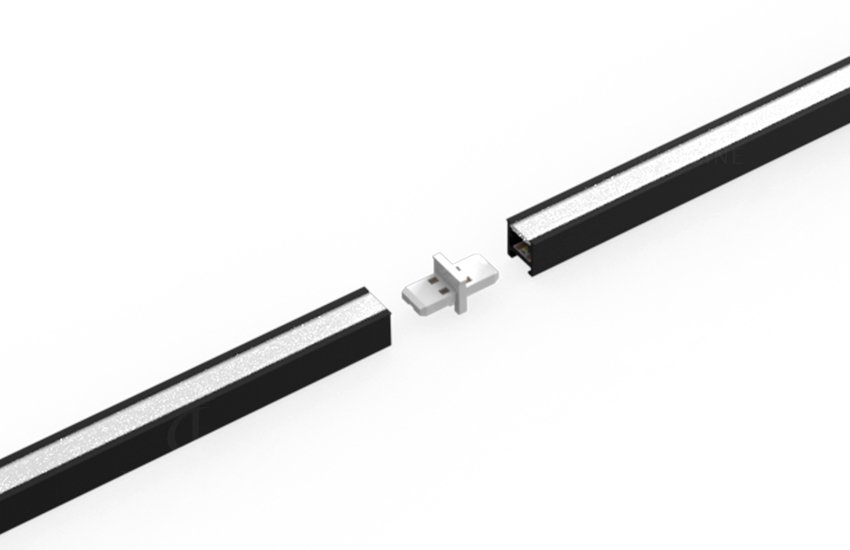

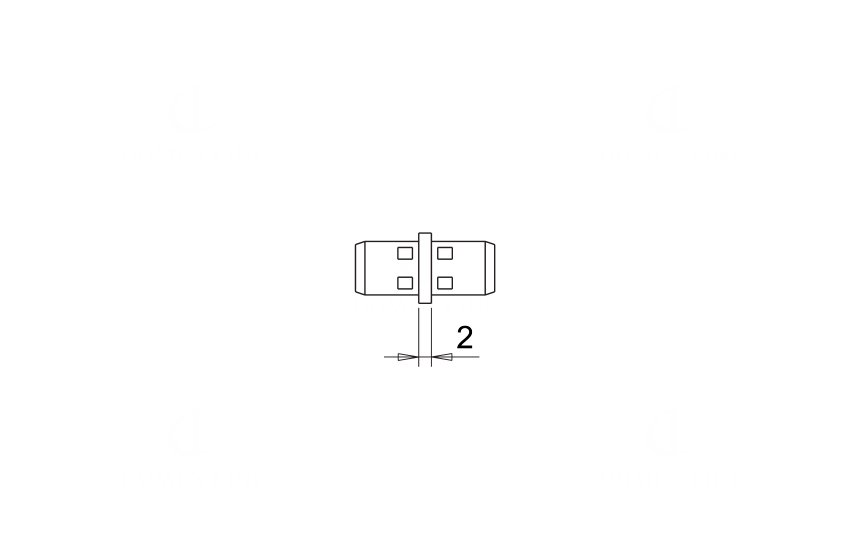

BACK TO BACK CONNETTOR

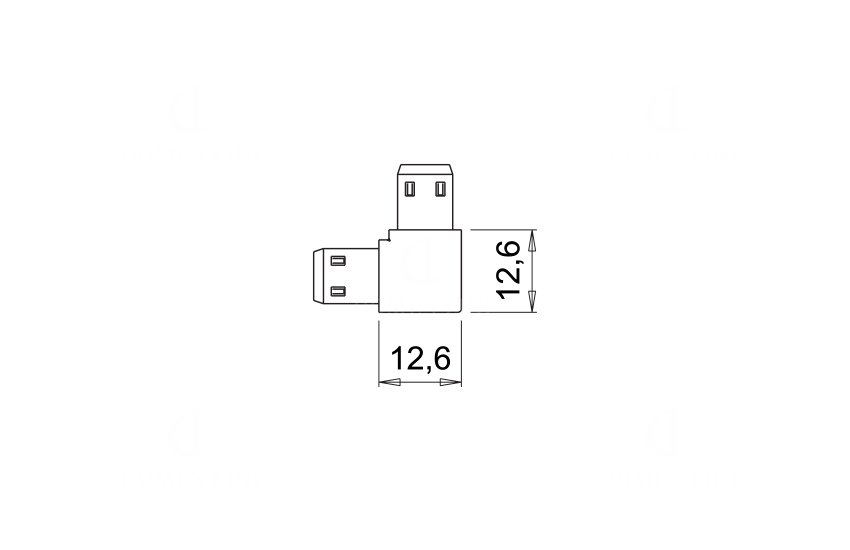

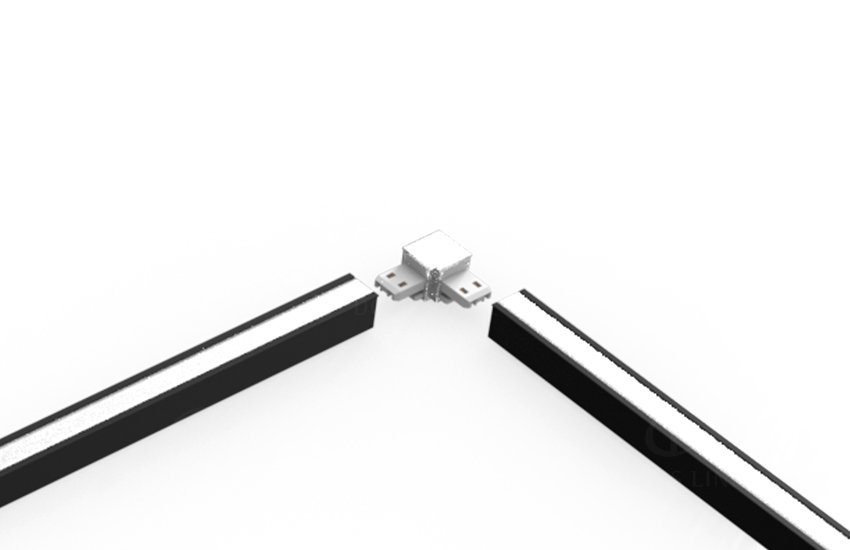

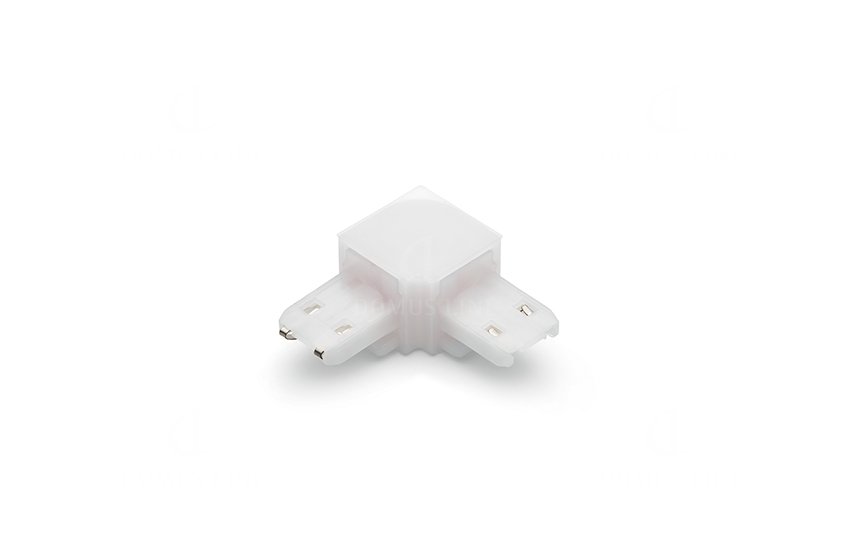

CORNER 90°

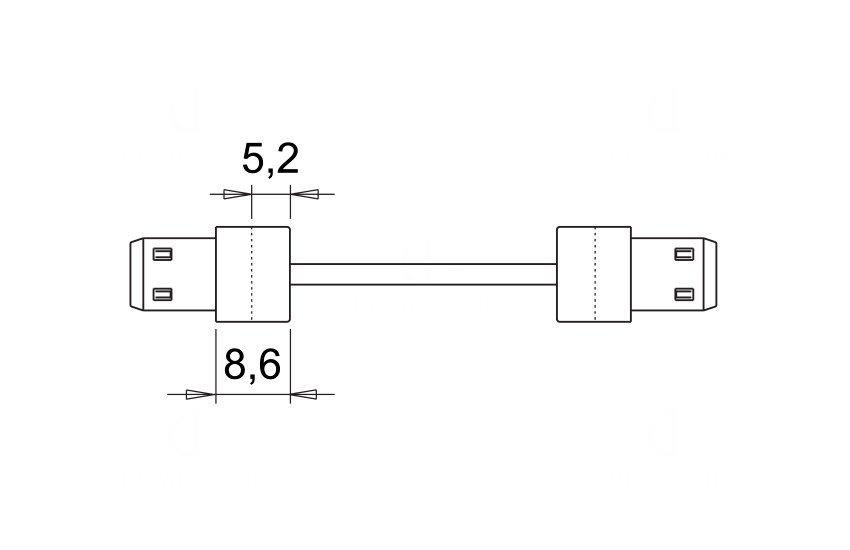

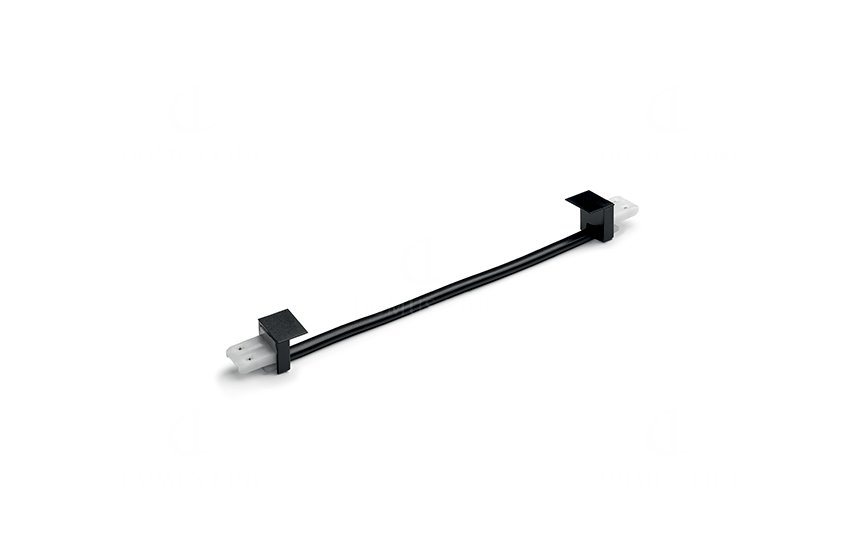

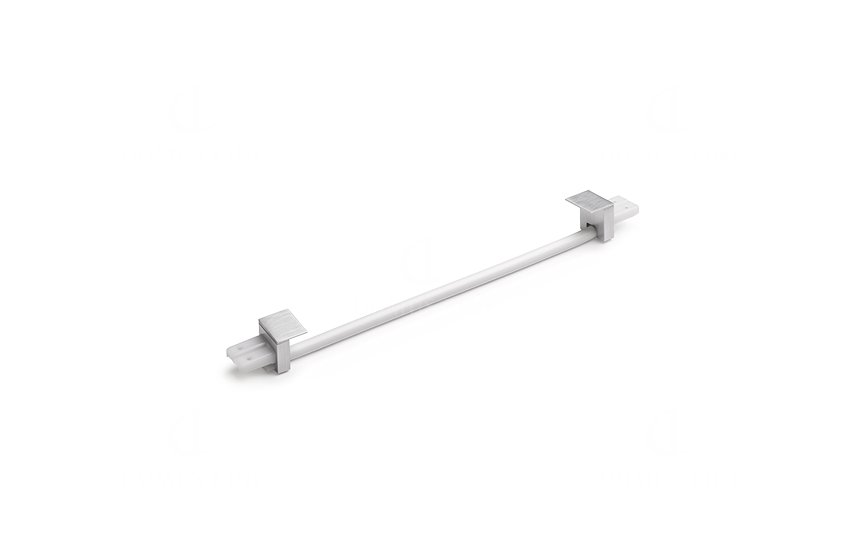

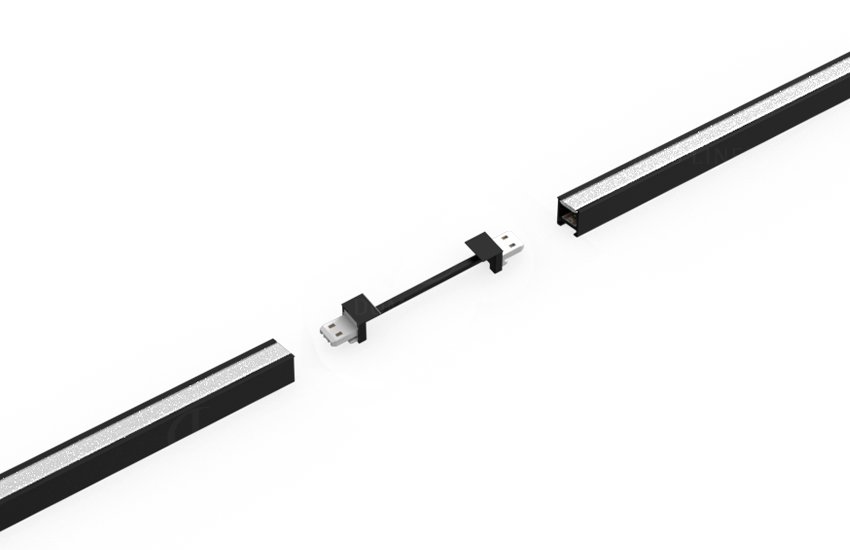

INTERCONNECTION CABLES

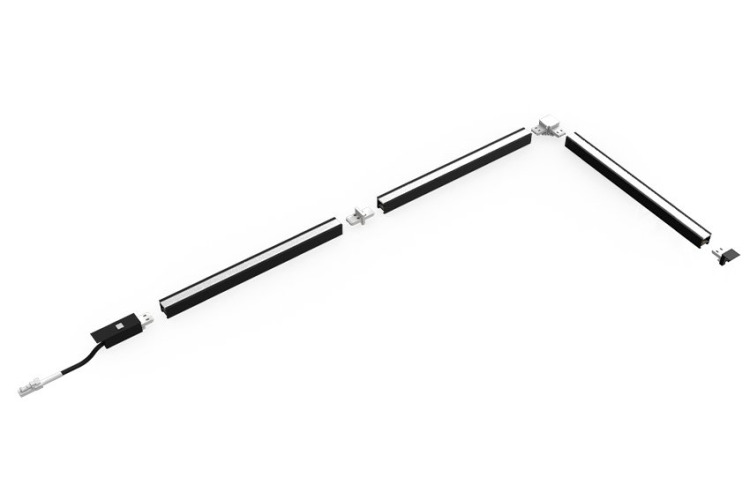

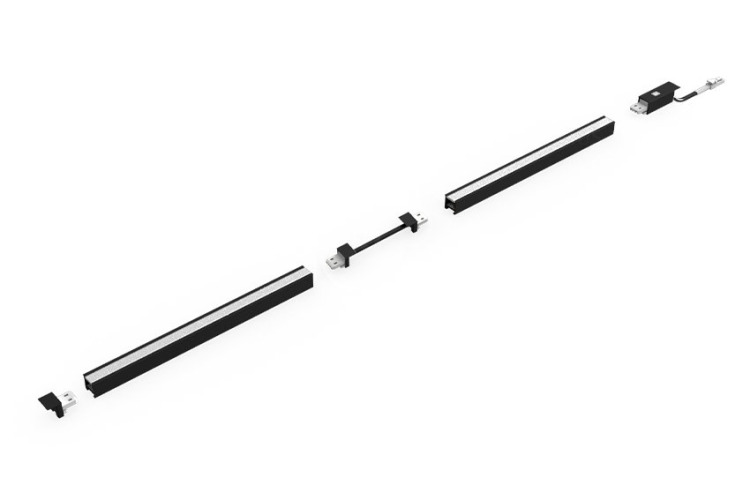

EXAMPLES OF CONFIGURATION
