EASI is a control system for dual-colour D-Motion luminaires that combines remote control and special power supplies with an integrated receiving control module.
With EASI, it is possible to create lighting systems in which 3 groups of an unlimited number of EASI Drivers can be controlled.
The system set-up is very simple: once the groups of luminaires to be controlled with EASI Disk have been identified and the number of EASI Drivers has been calculated in relation to their load, simply select the group selector on the power supply, connect the luminaires and turn on the remote control.
The use of the remote control, with five function buttons, is intuitive also thanks to the pre-set programmes that are activated in loop and enable the user to select both the brightness and the colour temperature, either dynamically or in stages.
EASI can also be supplied to control single-colour luminaires with the remote control that turns them on and off and controls the brightness.

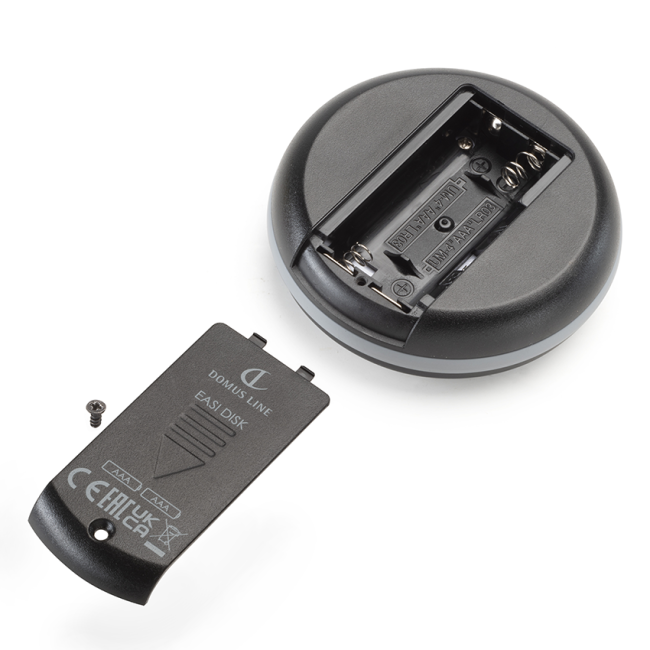

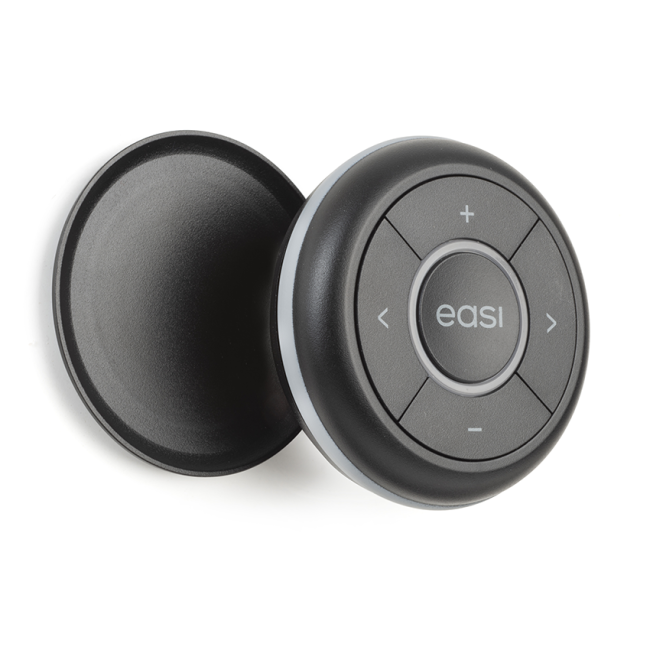

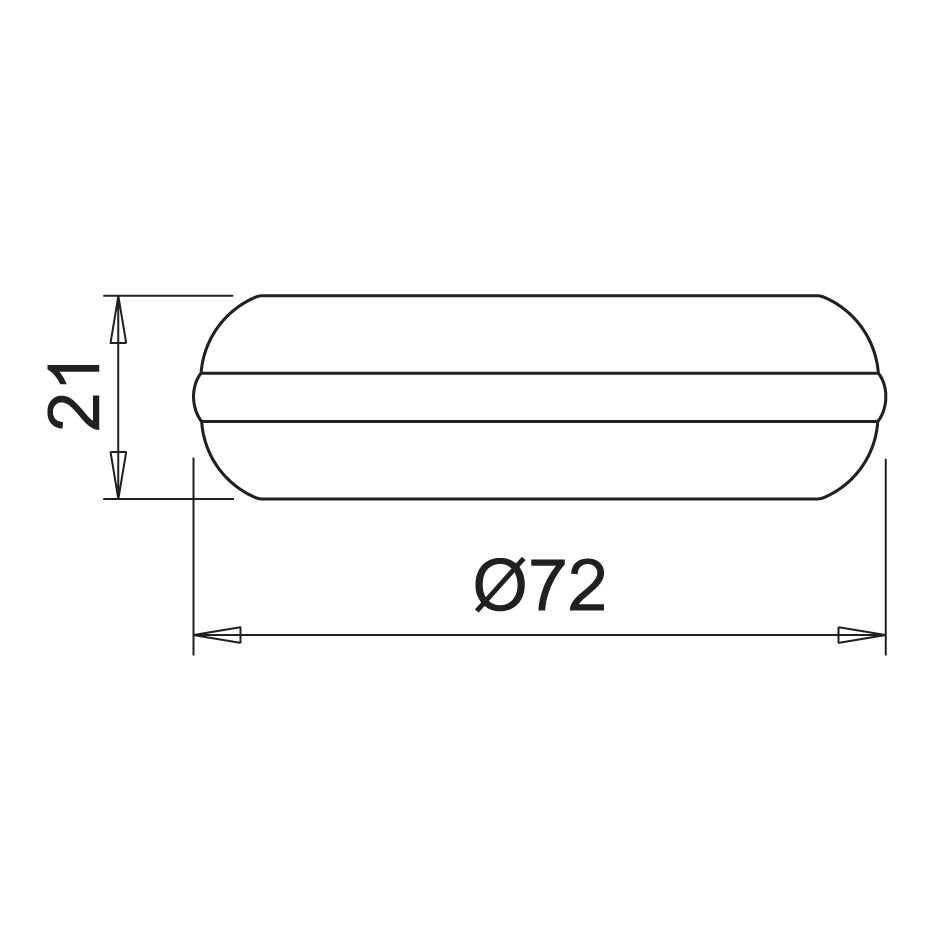

EASI DISK D-M
multi-channel remote control
EASI DISK D-M is a multi-channel remote control that can operate up to three groups of EASI DRIVER power units at a maximum distance of 15 meters.

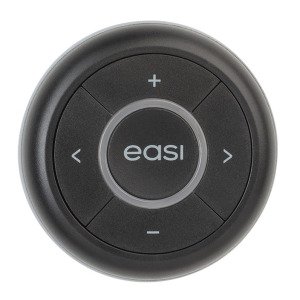

It features five buttons, that allows switching on and off, adjusting the light intensity—both in dynamic mode and in steps—and selecting the color temperature in WHC3 mode (three-step White Changeable) for the luminaires connected to the EASI DRIVER power units.
Configurations can be developed in which one or more power supplies are controlled by multiple remote controls (max 7).
The central button controls on/off for all luminaires connected to all the paired EASI DRIVER power supplies, using a soft-on/soft-off fade of 2.5 seconds at the most.
Quick presses of the EASI DISK selectors (< >) activate the luminaires powered by the EASI DRIVER power supply groups in “forward” (right button) and “rewind” (left button) modes.
Quick presses of the EASI DISK (+ -) buttons activate brightness control (in both dynamic and stepped modes) and colour temperature selection using the WHC3 mode (White Changeable in three steps) for luminaires powered by EASI DRIVER power units groups in “forward” (right button) and “rewind” (left button) modes.

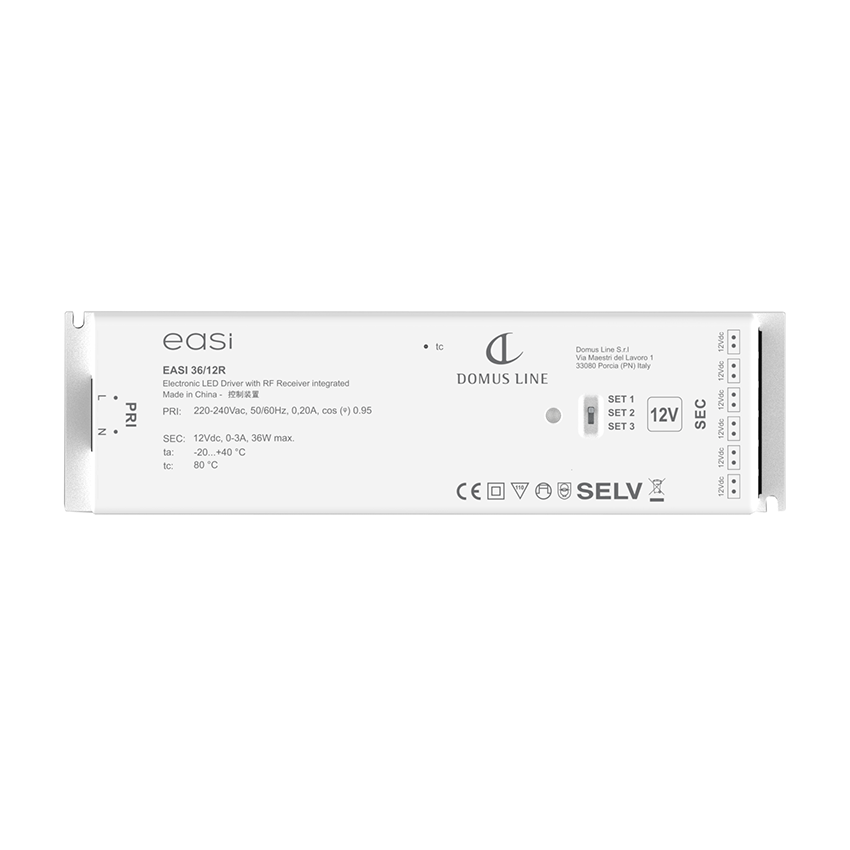

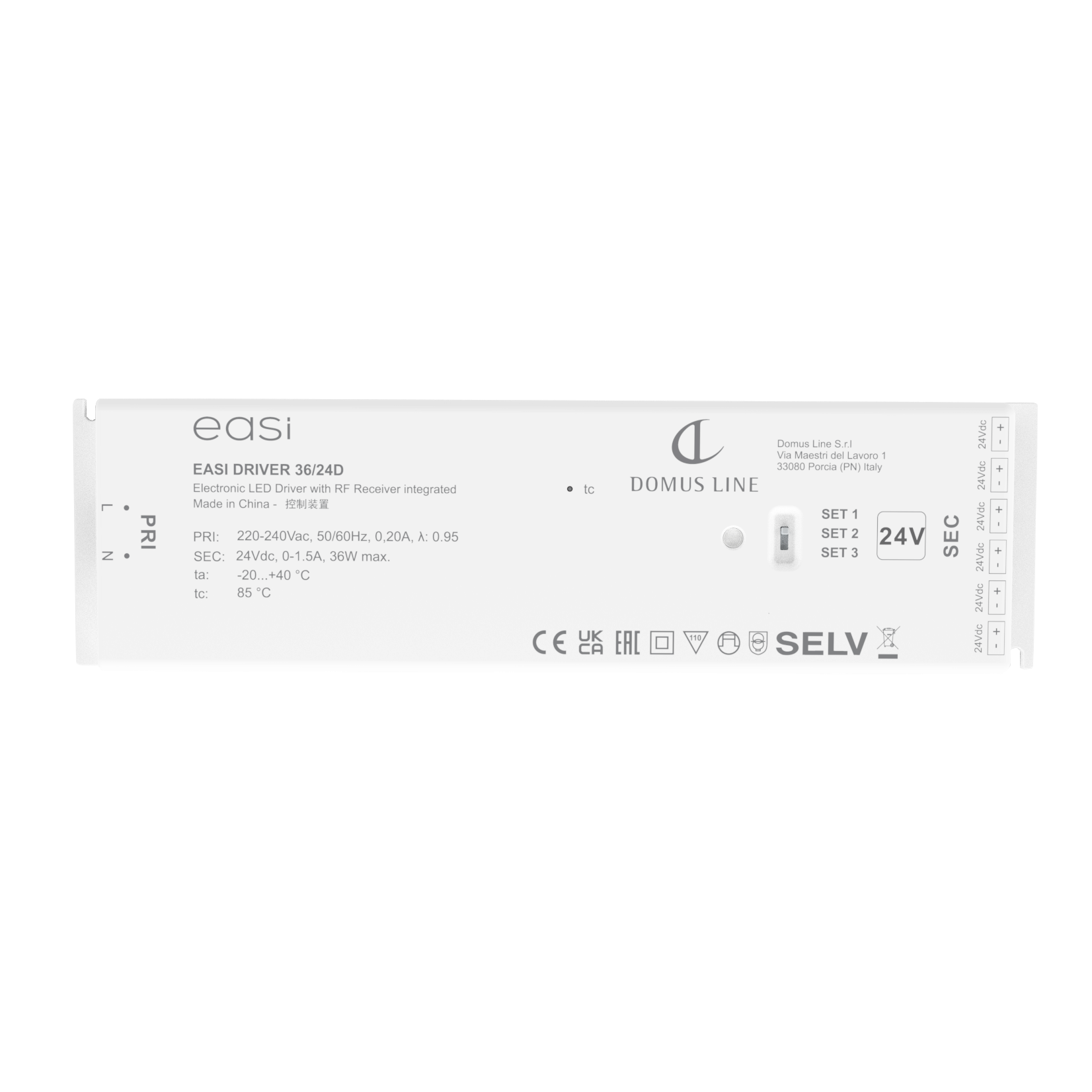

EASI DRIVER
IP20 independent electronic power supply for dual-colour D-Motion (and single-colour) LED lighting fixtures
Wired on the secondary with 6 Micro24 or Micro12 female connectors.

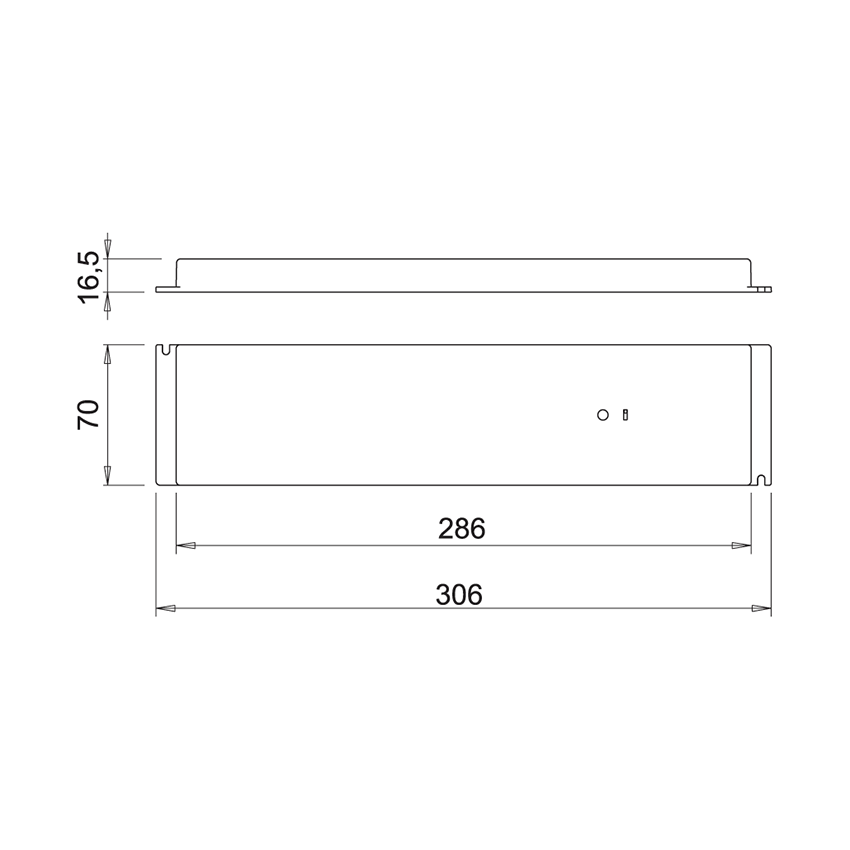

Available in two power options: 36W or 72W, both at 24VDC and 12VDC.
