HOLL

recessed LED luminaire

HOLL is a luminaire with perimeter light source integrated in a support installed in a blind groove (HOLL BH) or on a through hole (HOLL TH). The 2000 mm power cord output with Micro24 connector is axial or radial to the installation surface. Available in the painted steel and black touch finishes and in the configuration with D-Motion light source. HOLL TDM is configured with touch dimmer master switch, safe even when it comes into contact with wet hands, used to switch on and off, control the brightness and, in the D-Motion configuration, to select the colour temperature from the two available, of the individual luminaire and those connected to the output cable.



SPECIFICATIONS

Materials
thermoplastic polymers, polycarbonate

Light source
SMD LED module

Power
4,5W

Power supply
24Vdc

Cable
2000mm

Application type
under cabinet, under shelf

Installation
recessed

Patented product

MARKS AND SYMBOLS

ECODESIGN REGULATION

This product contains a light source of energy efficiency class G.

OTHER CONFIGURATIONS

  • This product is also available in the version with colour temperature control. Click here for more information.

PHOTOMETRY

  • Colour appearance:
    super warm white

    Colour temperature:
    2700 K

    CRI:
    Ra ≥ 80

  • Colour appearance:
    natural white

    Colour temperature:
    4000 K

    CRI:
    Ra ≥ 80

MODELS

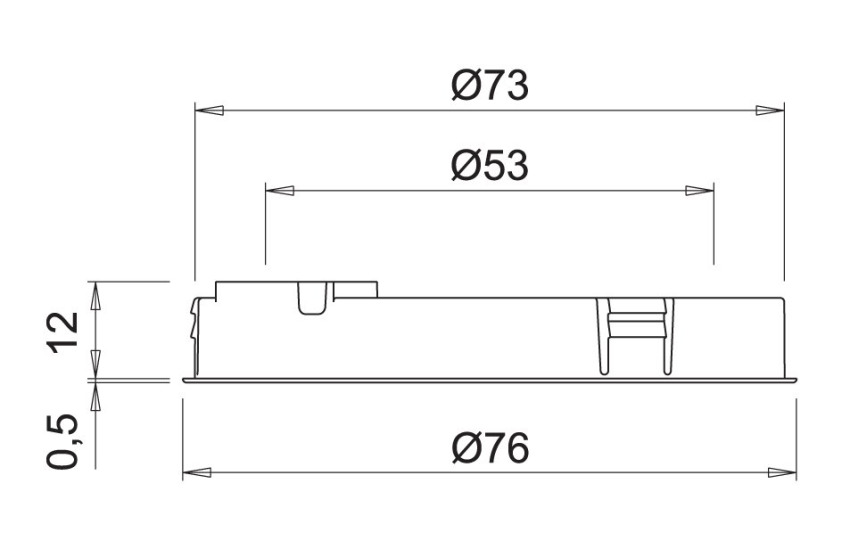

HOLL BH

without cover

LED converter not included. To be ordered separately.

MODELS: HOLL BH - 1 - Domus Line

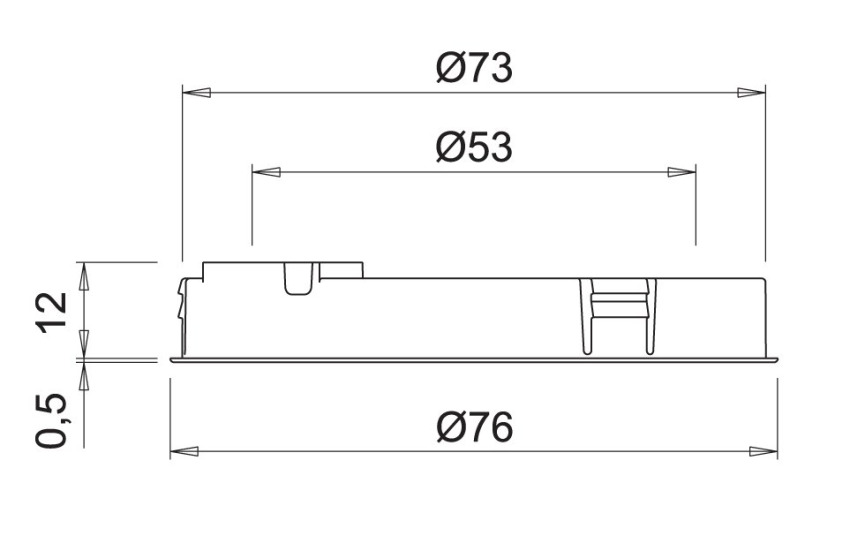

HOLL TH

with cover

LED converter not included. To be ordered separately.

MODELS: HOLL TH - 1 - Domus Line

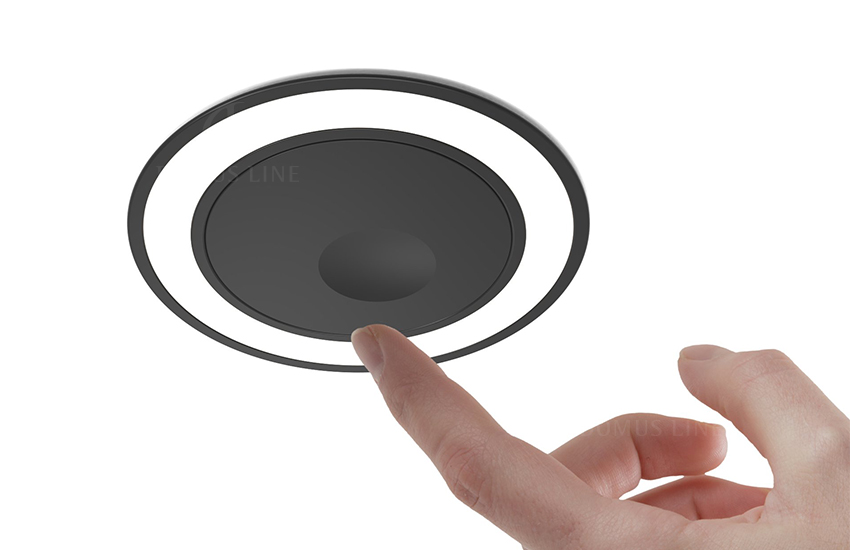

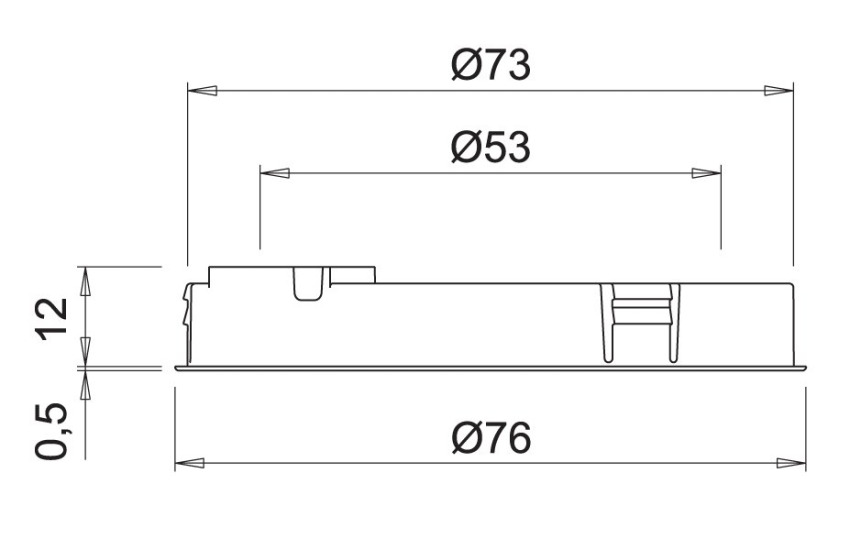

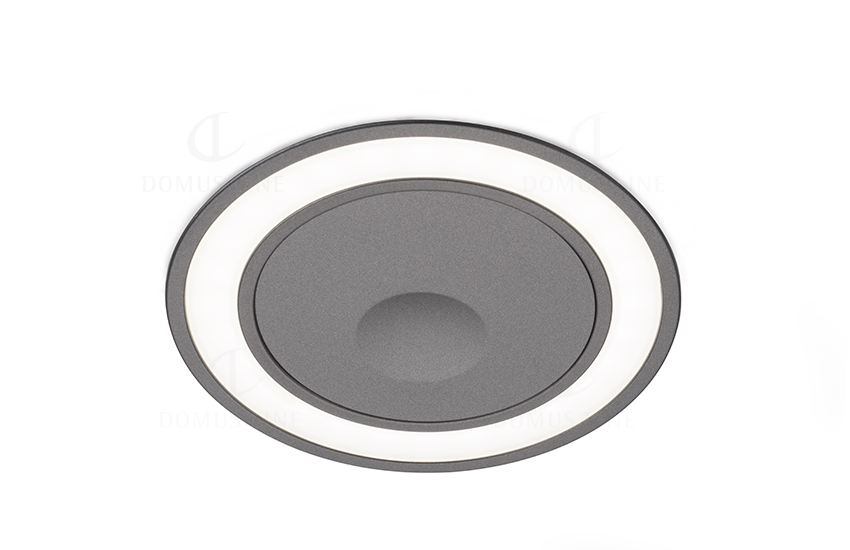

HOLL TDM

with touch dimmer master switch

The touch dimmer switch enables the individual luminaire and those connected to the output cable of HOLL TDM to be switched on and off, and the brightness to be adjusted (5-100%).

LED converter not included. To be ordered separately.

MODELS: HOLL TDM - 1 - Domus Line


FINISHES

  • FINISHES: HOLL - black touch - Domus Line black touch
  • FINISHES: HOLL - steel - Domus Line steel
