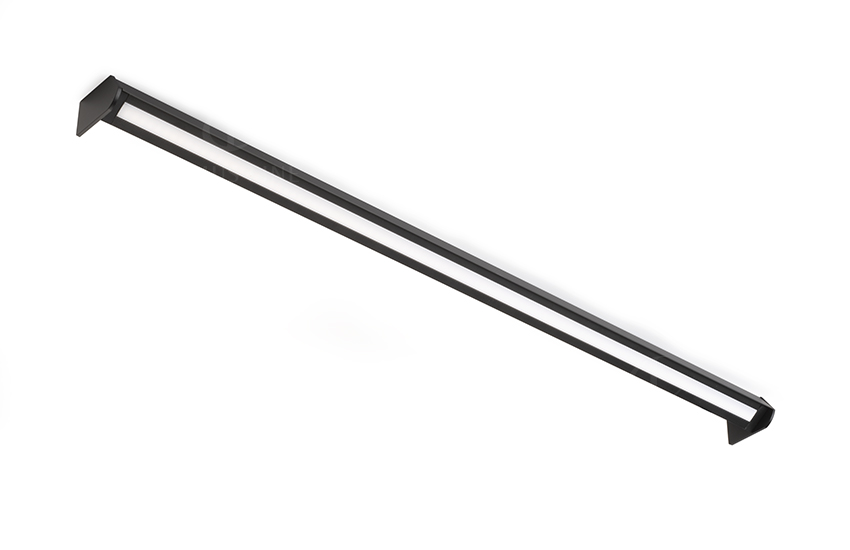

VELIT
surface-mounted LED profile

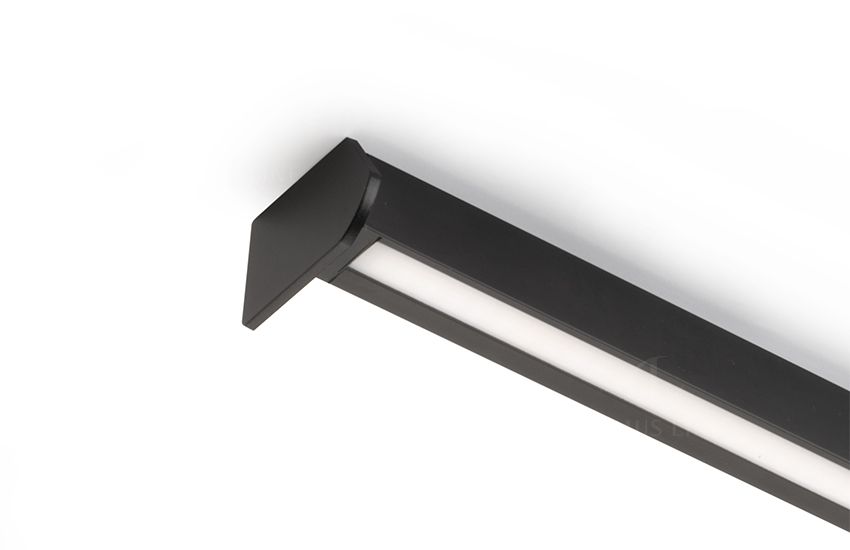

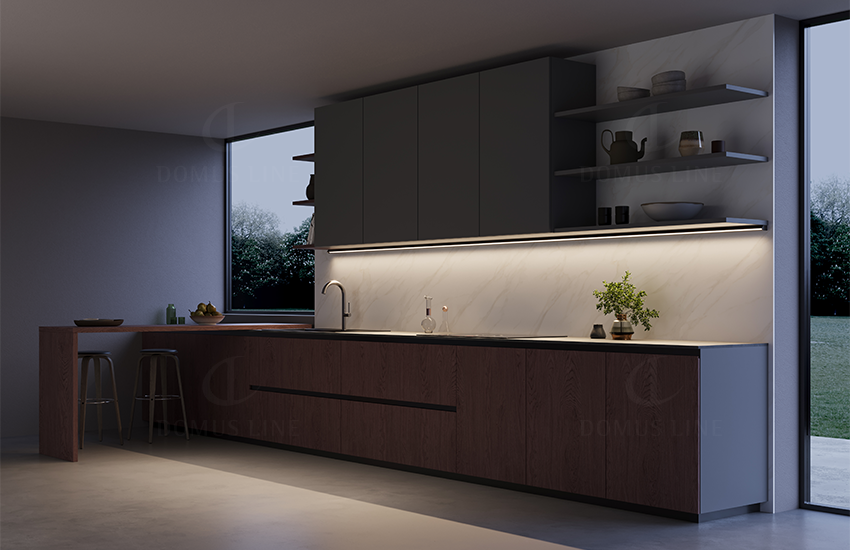

VELIT is a symmetrical light projection LED profile for surface installation, recommended for under- cabinet application adjacent to the wall or backsplash. The optics of the luminaire, with a light chamber that can be tilted 35° on the horizontal axis, and the profile section, featuring an anti-glare shield, allow the light beam to be directed onto the work surface while concealing the focal point of the source on the front side of the shelf. The luminaire is protected from water splashes from all directions, preventing these from penetrating in damaging quantities (IP44).
SPECIFICATIONS
9,6W (1000mm dual colour D-Motion)
9,1W (1000mm dual colour D-Motion Wave)
dual colour D-Motion
dual colour D-Motion Wave
900mm
1000mm
1200mm
1500mm
2000mm
3000mm
3000K
4000K
2700 - 4000K
MODELS
VELIT
without switch
Power supply not included.
VELIT SD
with sensor-dimmer switch
The sensor-dimmer switch of VELIT SHE SD allows switching on, switching off, and adjusting the brightness (10-100%) of the individual luminaire.
The master sensor-dimmer switch of VELIT SHE D-M SD allows switching on, switching off, adjusting the brightness (10-100%), and selecting the colour temperature in WHC (White Changeable) mode of the individual luminaire.
The sensor-dimmer switch of VELIT HE D-MWA SD allows progressive switching on, progressive switching off, adjusting the brightness (10-100%), and selecting the colour temperature in WHC (White Changeable) mode of the individual luminaire.
Power supply not included.
