PYBOX
power control and distribution unit
PYBOX SS2 (Switch and Socket) is a control and power distribution unit operating at 220-240VAC, recommended for use in bathroom furniture. PYBOX integrates a Schuko (SCK) or Franco Belgian socket (FB)and an ON/Off switch, allowing the provision of network voltage to luminaires with a power supply or to power systems for low-voltage luminaires. The appliance is supplied with a 500mm power cord with a terminal for connection to the mains (IP44) and an 650mm output cable.
SPECIFICATIONS
Input220-240VAC
Output220-240VAC
PowerCarico presa max 1500W
Carico interruttore max 500W
Carico interruttore max 500W
FINISHESwhite
Input wiring500mm
Output wiring650mm
Certifications
DOWNLOAD
MODELS

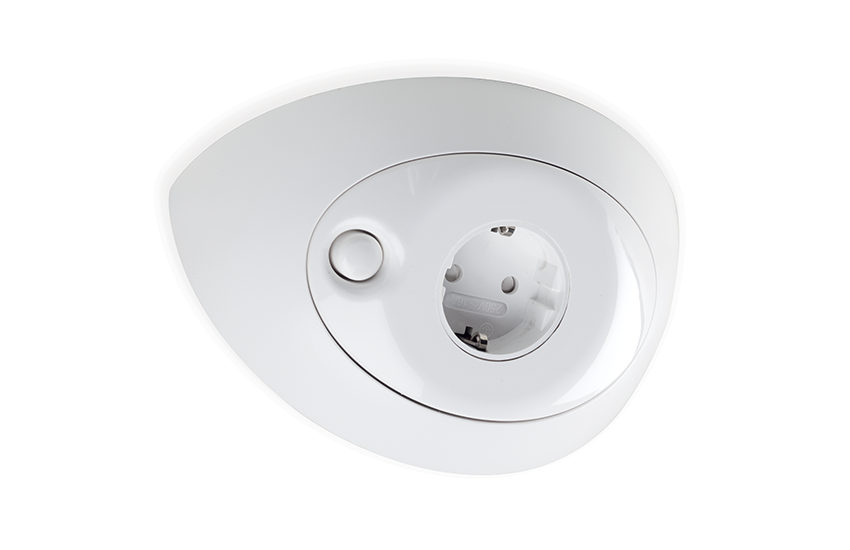

PYBOX SS2 SCH
power control and distribution unit with Schuko (SCK) socket

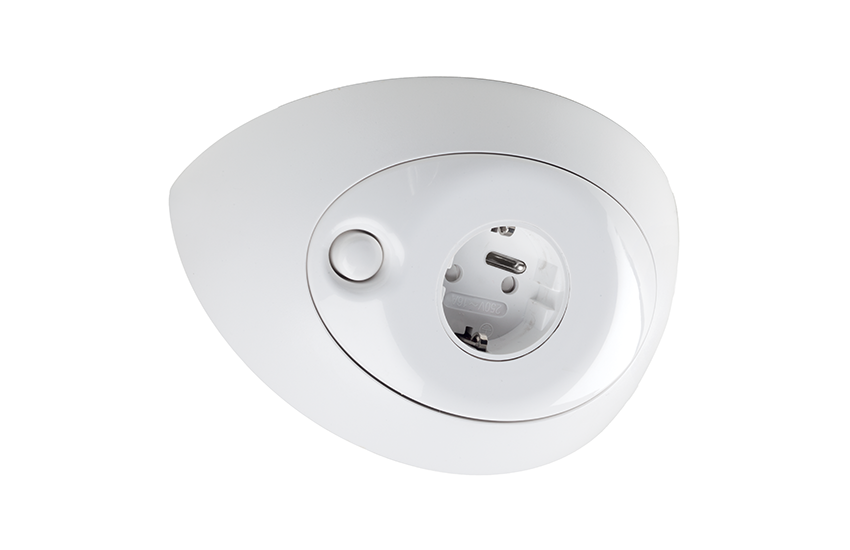

PYBOX SS2 FB
power control and distribution unit with Franco Belgian (FB) socket
